Multipurpose Filling and Forming Machine (HLT-700U)

Automatic Dumpling Machine

Model no : HLT-700U

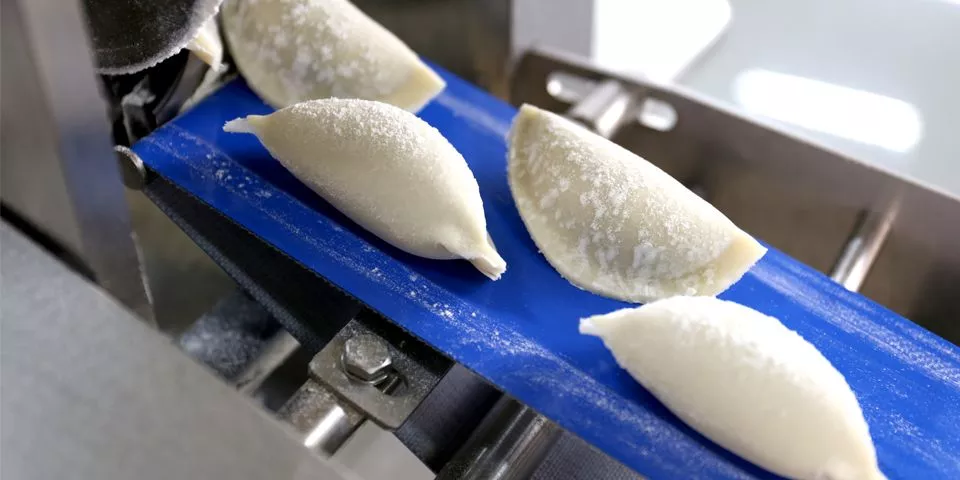

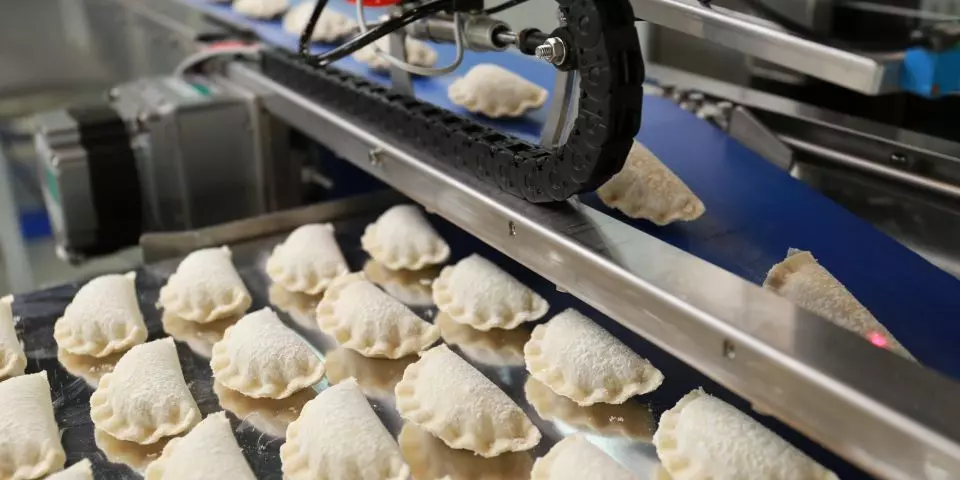

ANKO’s most powerful Dumpling Machine, the “HLT-700U Multipurpose Filling and Forming Machine” is integrated with a new filling system! It can process large pieces of food ingredients, less oil, and high roughage fillings, as well as cooked meats that are less viscous. Not only it can handle a wide range of ingredients, but it can also produce dumplings that are plump and look handmade. This machine is compact in size (less than 1.5 square meters) and when forming dumplings at 25g per piece, it has the capacity of producing 12,000 pieces per hour. It is suitable for independently owned restaurants and large food factories. The IoT (Internet of Things) have been installed to ensure that the production can be overseen by managers in real time on a mobile device, and the data can be collected and processed through Big Data Analytics to support decision making. We have also installed a maintenance reminder program to ensure consistent productivity. Please click on the link below to fill out the form and our sales professionals will get back to you with customized solutions for your food production specifications.

Specifications

  • Dimensions: 1,515 (L) x 615 (W) x 1,640 (H) mm
  • Power: 6.5 kW
  • Capacity: 2,000–12,000 pcs/hr
  • Product name: Dumpling, Potsticker, Fried leek dumpling, Curry puff, Noodle, Roll, Pie
  • Product weight: 13–100 g/pc
  • Optional accessories: Filling rotor, Standard mold, Artisan mold, Noodle mold, CE kit
  • Weight (net): 540 kg
  • Production capacity is for reference only. It’ll change according to different product specifications and recipes. Specifications are subject to change without notice.

Features

  • The Built-in IoT System
    You can now sign up and log on ANKO’s IoT website to monitor and manage your food production with integrated food production technology. All the manufacturing data and the production yield rate is collected daily and analyzed via Big Data to provide you with cost-effective suggestions for making your production line more effective.
  • Operates using New Eco-Friendly Refrigerants
    Eco-Friendly Refrigerants have the same cooling effect but with only 1/10 of the GWP measure and comply with EU standards.
  • Easy-to-use control panel
    User-friendly interface allows you to operate the machine easily and up to 99 recipes can be saved.
  • Filling hopper with quick mounting design
    Makes the filling hopper easier and more convenient to install or uninstall for cleaning.

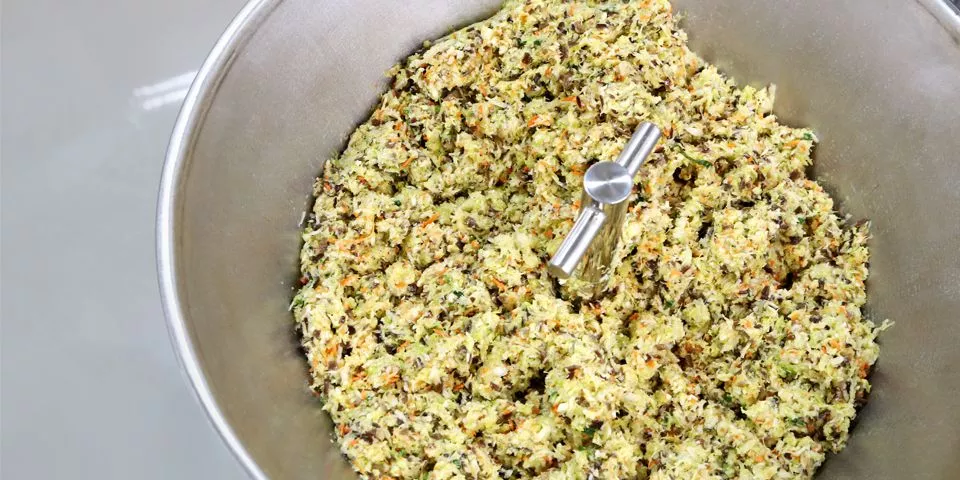

  • Filling hopper with stepper strip
    Prevents filling from spinning in the hopper and keeps filling feeding stably.
  • 48-liter filling hopper
    Helps decrease refilling times and increase the overall efficiency of human resources.
  • Innovative airway design
    Let air flow in and out to form dumplings into an attractive shape.

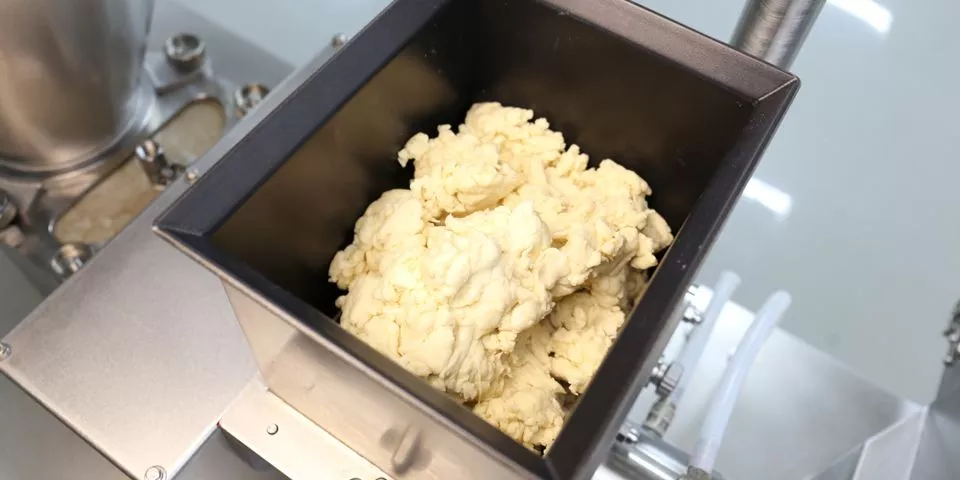

  • Optimized dough feeding screws
    Make dough pass screws directly and be extruded smoother to prevent spinning problem.
  • Enhance water resistance
    Upgraded rubber seal can exactly fit the machine cabinet frames.

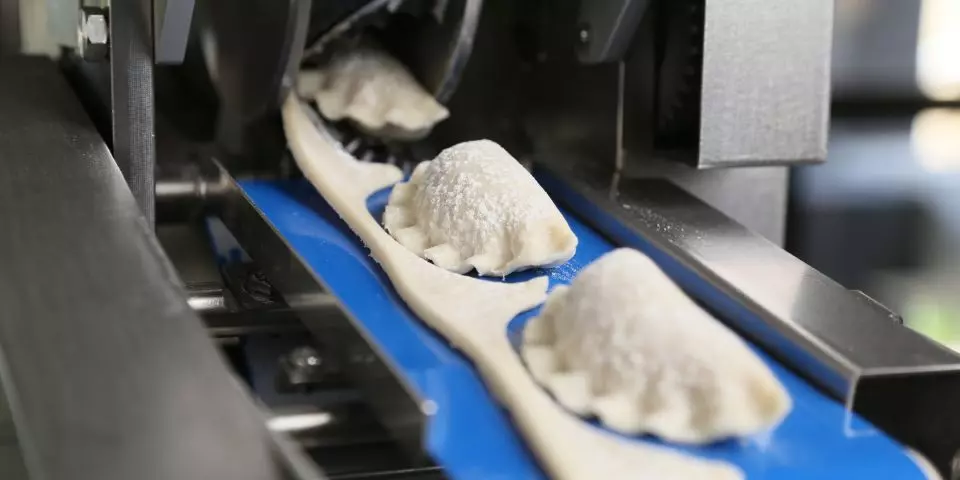

  • Tasty Appearance
    A whole new design of shaping mechanism to enhance the food’s handmade look.

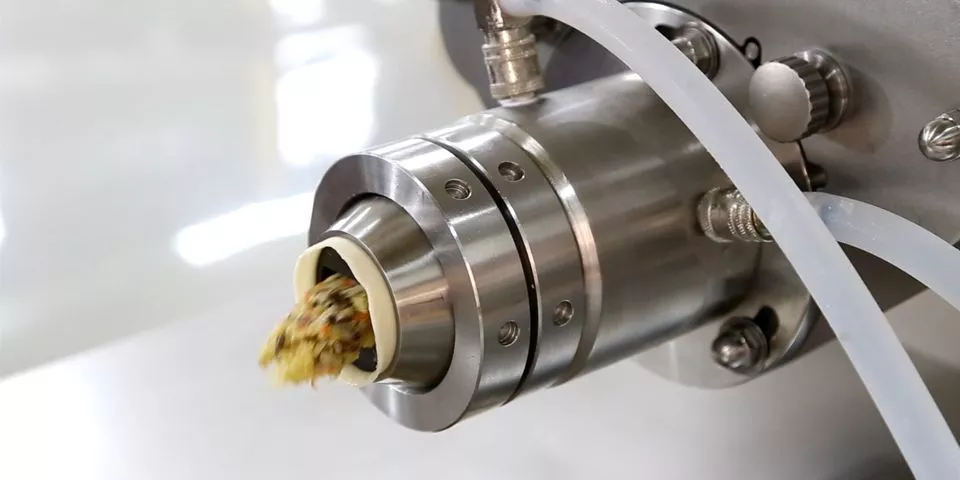

  • Better Taste
    Filling feeding system enhancement to reduce pressure and keep food texture.
Enquire Now

Food produced by this machine

Pasta

Samosa

Ravioli

Pizza-Roll

Calzone
